分類

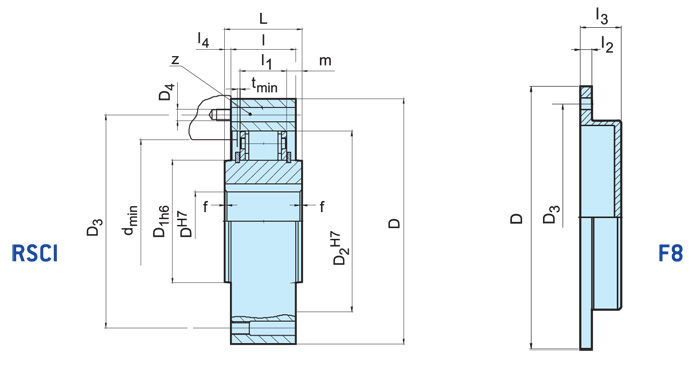

| Type | Size | Speeds | Number | Weight | |||||||||||||||||||
| RSCI | dH7 [mm] | TKN1) [Nm] | nmax2) [min-1] | nimin3) [min-1] | nimax4) [min-1] | D5) [mm] | D1h6 [mm] | D2H7 [mm] | D3 [mm] | D4 | z | L [mm] | I [mm] | I1 [mm] | I4 [mm] | f×45° [mm] | dmin [mm] | m [mm] | tmin [mm] | I2 [mm] | I3 [mm] | RSCI [kg] | F8 [kg] |
| 20 | 212 | 315 | 750 | 15000 | 90 | 36 | 66 | 78 | M6 | 6 | 35 | 35 | 25 | 0 | 0.8 | 52 | 5 | 1 | 8 | 16 | 1.5 | 0.3 | |
| 25 | 319 | 300 | 725 | 14000 | 95 | 40 | 70 | 82 | M6 | 6 | 35 | 35 | 25 | 0 | 1.0 | 56 | 5 | 1 | 8 | 16 | 1.6 | 0.4 | |
| 30 | 375 | 290 | 700 | 11000 | 100 | 45 | 75 | 87 | M6 | 6 | 35 | 35 | 25 | 0 | 1.5 | 62 | 5 | 1 | 8 | 16 | 1.8 | 0.4 | |
| 35 | 550 | 280 | 670 | 11000 | 110 | 50 | 80 | 96 | M6 | 8 | 35 | 35 | 25 | 0 | 1.5 | 66 | 5 | 1 | 8 | 16 | 2.1 | 0.5 | |
| 40 | 800 | 260 | 630 | 8000 | 125 | 60 | 90 | 108 | M8 | 8 | 35 | 35 | 25 | 0 | 1.5 | 76 | 5 | 1 | 10 | 21 | 2.7 | 0.7 | |
| 45 | 912 | 255 | 610 | 7000 | 130 | 65 | 95 | 112 | M8 | 8 | 35 | 35 | 25 | 0 | 1.5 | 82 | 5 | 1 | 10 | 21 | 2.9 | 0.9 | |
| 50 | 1400 | 235 | 560 | 6000 | 150 | 80 | 110 | 132 | M8 | 8 | 40 | 40 | 25 | 0 | 1.5 | 100 | 7.5 | 1 | 10 | 21 | 4.3 | 1 | |
| 60 | 2350 | 210 | 510 | 6000 | 175 | 85 | 125 | 155 | M10 | 8 | 60 | 50 | 36 | 5 | 2.0 | 110 | 12 | 2 | 12 | 35 | 6.5 | 1.8 | |
| 70 | 3050 | 195 | 470 | 4000 | 190 | 100 | 140 | 165 | M10 | 12 | 60 | 50 | 36 | 5 | 2.0 | 120 | 12 | 2 | 12 | 35 | 8.6 | 1.9 | |
| 80 | 4500 | 180 | 440 | 4000 | 210 | 120 | 160 | 185 | M10 | 12 | 70 | 60 | 36 | 5 | 2.0 | 140 | 17 | 3 | 12 | 35 | 12.5 | 2.6 | |
| 80M | 5800 | 155 | 375 | 4000 | 210 | 120 | 160 | 185 | M10 | 12 | 70 | 60 | 46 | 5 | 2.0 | 140 | 12 | 2 | 12 | 35 | 13.1 | 2.6 | |
| 90 | 5600 | 170 | 410 | 3000 | 230 | 140 | 180 | 206 | M12 | 12 | 80 | 70 | 36 | 5 | 2.5 | 165 | 22 | 3 | 12 | 35 | 17.4 | 3.0 | |
| 90M | 8700 | 145 | 350 | 3000 | 245 | 140 | 180 | 206 | M12 | 12 | 80 | 70 | 46 | 5 | 2.5 | 160 | 17 | 2 | 12 | 35 | 18.3 | 3.0 | |
| 100 | 10500 | 145 | 355 | 3000 | 290 | 140 | 210 | 258 | M16 | 12 | 90 | 80 | 52.6 | 5 | 2.5 | 180 | 18.6 | 3 | 15 | 37 | 28 | 5.0 | |
| 100M | 16000 | 140 | 340 | 2400 | 290 | 170 | 210 | 258 | M16 | 12 | 90 | 80 | 63 | 5 | 2.5 | 200 | 13.5 | 2 | 12 | 35 | 30 | 5.0 | |
| 130 | 15750 | 135 | 330 | 2400 | 322 | 170 | 240 | 278 | M16 | 12 | 90 | 80 | 52.6 | 5 | 3.0 | 210 | 18.6 | 3 | 15 | 37 | 35 | 6.0 | |
